VAC³
The SACH VAC 3 is a compact and powerful central vacuum system designed for reliable everyday cleaning. Available in 1.5 kW and 1.7 kW versions, it offers strong suction performance while maintaining a practical, space-saving design.
Features
<table>
<thead>
<tr>
<th>Technical Characteristic</th>
<th>VAC³ Dynamic 1.5</th>
<th>VAC³ Digital 1.5</th>
<th>VAC³ Dynamic 1.7</th>
<th>VAC³ Digital 1.7</th>
</tr>
</thead>
<tbody>
<tr>
<td>Reference</td>
<td>UD7100</td>
<td>UD7120</td>
<td>UD7110</td>
<td>UD7130</td>
</tr>
<tr>
<td>Power</td>
<td>1,500 W</td>
<td>1,500 W</td>
<td>1,700 W</td>
<td>1,700 W</td>
</tr>
<tr>
<td>Max. Consumption</td>
<td>9.2 A</td>
<td>9.2 A</td>
<td>8.2 A</td>
<td>8.2 A</td>
</tr>
<tr>
<td>Power Supply</td>
<td>230 V</td>
<td>230 V</td>
<td>230 V</td>
<td>230 V</td>
</tr>
<tr>
<td>Frequency</td>
<td>50/60 Hz</td>
<td>50/60 Hz</td>
<td>50/60 Hz</td>
<td>50/60 Hz</td>
</tr>
<tr>
<td>Airwatts</td>
<td>750 W</td>
<td>750 W</td>
<td>740 W</td>
<td>740 W</td>
</tr>
<tr>
<td>Max. Waterlift</td>
<td>3,700 mmH₂O</td>
<td>3,700 mmH₂O</td>
<td>3,100 mmH₂O</td>
<td>3,100 mmH₂O</td>
</tr>
<tr>
<td>Max. Air-flow</td>
<td>187 m³/h</td>
<td>187 m³/h</td>
<td>289 m³/h</td>
<td>289 m³/h</td>
</tr>
<tr>
<td>Noise Level</td>
<td><60 dB</td>
<td><60 dB</td>
<td><60 dB</td>
<td><60 dB</td>
</tr>
<tr>
<td>Filtration System</td>
<td>TRIPLE SYSTEM</td>
<td>TRIPLE SYSTEM</td>
<td>TRIPLE SYSTEM</td>
<td>TRIPLE SYSTEM</td>
</tr>
<tr>
<td>Dust Container Capacity</td>
<td>28 L</td>
<td>28 L</td>
<td>28 L</td>
<td>28 L</td>
</tr>
<tr>
<td>Digital Display</td>
<td>No</td>
<td>Yes</td>
<td>No</td>
<td>Yes</td>
</tr>
<tr>
<td>HEPA Filter Surface Area</td>
<td>6000 cm²</td>
<td>6000 cm²</td>
<td>6000 cm²</td>
<td>6000 cm²</td>
</tr>
<tr>
<td>Pro-Tecta Filter Surface Area</td>
<td>1300 cm²</td>
<td>1300 cm²</td>
<td>1300 cm²</td>
<td>1300 cm²</td>
</tr>
<tr>
<td>Weight</td>
<td>16 kg</td>
<td>16 kg</td>
<td>16 kg</td>
<td>16 kg</td>
</tr>
<tr>
<td>Number of Inlet Valves</td>
<td>10</td>
<td>10</td>
<td>18</td>
<td>18</td>
</tr>
<tr>
<td>Furthest Valve from the Unit</td>
<td>40 m</td>
<td>40 m</td>
<td>70 m</td>
<td>70 m</td>
</tr>
<tr>
<td>Size of Home</td>
<td>500 m²</td>
<td>500 m²</td>
<td>1,000 m²</td>
<td>1,000 m²</td>
</tr>
</tbody>
</table>
3 filtering systems
Hepa filters and PROTECT, self-cleaning filter and an option of driven bag.
The Self-cleaning Bag system and the driven bag can be combined for greater efficiency in the aspirated air filter.
Powerful in performance
Low sound level. Designed with sound-absorbing material that muffles sound.
Carbon filter which captures the dust produced by the motor brushes. Replaceable from the outside.
Regulation valve which will allow air to enter the filter area in case the plant works under vacuum.
New generation engines. Same features and lower consumption.
Variations

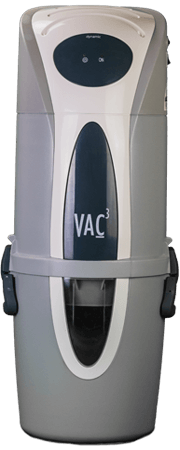

VAC³ Dynamic
1.5 (WITHOUT KIT) - UD7100-SC/E
1.7 (WITHOUT KIT) - UD7110-SC/E

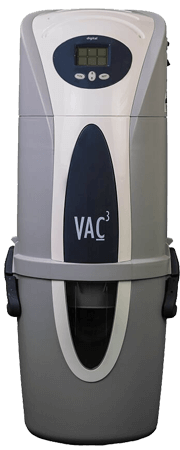

VAC³ Digital
1.5 (WITHOUT KIT) - UD7120-SC/E
1.7 (WITHOUT KIT) - UD7130-SC/E
