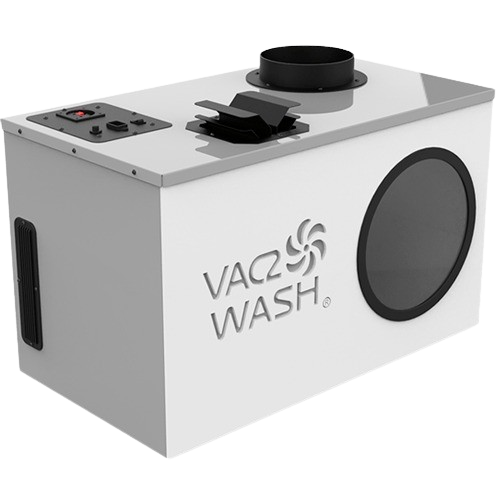

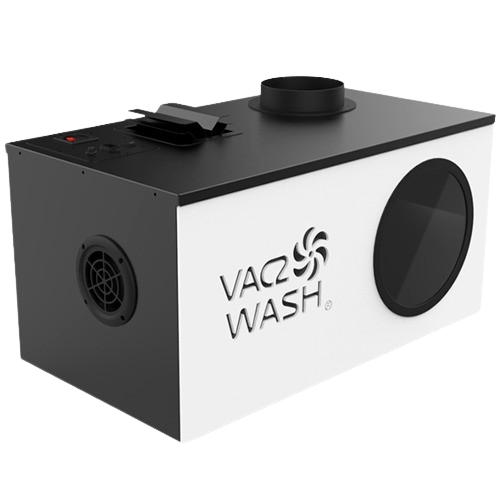

VAC2WASH

VAC2WASH is a vacuum-powered laundry transport system designed for homes and large-scale installations. Unlike traditional laundry chutes, it uses vacuum power to transport laundry from door ports to the laundry room, making it suitable for both single- and multi-level buildings. The range includes models supporting up to 20 door ports and transportation distances of up to 120 m.

Features

Technical Characteristic VAC2WASH ORIGIN VAC2WASH ULTRA VAC2WASH COMMERFLOW
Reference LJU004-SC LJU005-SC LJU006-SC
Power Supply 220–240 V / 50 Hz 220–240 V / 50 Hz 220–240 V / 50 Hz
Max. Power 1,200 W 1,500 W 2,200 W
Max. Airflow 1,700 m³/h 2,500 m³/h 4,500 m³/h
Noise Level 68 dB(A) 68 dB(A) 68 dB(A)
Weight 32 kg 40 kg 48 kg
Dimensions 73 × 48 × 43 cm 80 × 48 × 48 cm 95 × 48 × 49 cm
Air Inlet Ø160 mm Ø160 mm Ø200 mm
Maximum Door Ports 4 8 20
Furthest Port 60 m 90 m 120 m
Auto Emptying Yes Yes Yes
Finish Gloss Acrylic Gloss Acrylic Gloss Acrylic

VAC2WASH is an innovative vacuum-powered laundry transport system designed to make handling dirty laundry easier and more convenient. Instead of relying on gravity like a traditional laundry chute, the system uses vacuum power to transport laundry from rooms throughout the building directly to the laundry room.

The system works through dedicated door ports installed in different rooms. Simply open the nearest door port, insert the dirty laundry, and VAC2WASH automatically transports it to the central unit. This eliminates the need for traditional laundry baskets in bedrooms, wardrobes or bathrooms.

VAC2WASH can be installed in single-level or multi-level homes and can also be adapted for industrial use. The range offers three models to accommodate different installation requirements, from smaller residential applications to larger and commercial installations.

The range includes VAC2WASH ORIGIN, supporting up to 4 door ports; VAC2WASH ULTRA, supporting up to 8 door ports; and VAC2WASH COMMERFLOW, the most powerful model, supporting up to 20 door ports and transportation distances of up to 120 m.

‍

Variations

VACWASH COMMERFLOW

  • Power Supply: 220–240 V / 50 Hz
  • Max. Power: 2,200 W
  • Max. Airflow: 4,500 m³/h
  • Noise Level: 68 dB(A)
  • Weight: 48 kg
  • Dimensions: 95 × 48 × 49 cm
  • VAC2WASH ORIGIN

  • Power Supply: 220–240 V / 50 Hz
  • Max. Power: 1,200 W
  • Max. Airflow: 1,700 m³/h
  • Noise Level: 68 dB(A)
  • Weight: 32 kg
  • Dimensions: 73 × 48 × 43 cm
  • VAC2WASH ULTRA

  • Power Supply: 220–240 V / 50 Hz
  • Max. Power: 1,500 W
  • Max. Airflow: 2,500 m³/h
  • Noise Level: 68 dB(A)
  • Weight: 40 kg
  • Dimensions: 80 × 48 × 48 cm
