VAC Range
SACH has developed the " Pro-Tecta " filtration system, which extends the filter's maintenance interval thanks to a fine plastic mesh that traps dust, preventing it from adhering to the filter walls. Quick and effective cleaning makes this filter one of the most efficient on the market.
Features
<table>
<thead>
<tr>
<th>Technical Characteristic</th>
<th>VACdynamic 1.6</th>
<th>VACdynamic 1.8</th>
<th>VACdynamic 2.4</th>
<th>VACdigital 1.6</th>
<th>VACdigital 1.8</th>
<th>VACdigital 2.4</th>
</tr>
</thead>
<tbody>
<tr>
<td>Power</td>
<td>1,600 W</td>
<td>1,800 W</td>
<td>2,400 W (2 × 1,200)</td>
<td>1,600 W</td>
<td>1,800 W</td>
<td>2,400 W (2 × 1,200)</td>
</tr>
<tr>
<td>Motor</td>
<td>High-speed By-Pass peripheral motor</td>
<td>High-speed By-Pass peripheral motor</td>
<td>2 × High-speed through-flow motor</td>
<td>High-speed By-Pass peripheral motor</td>
<td>High-speed By-Pass peripheral motor</td>
<td>2 × High-speed through-flow motor</td>
</tr>
<tr>
<td>Air-flow</td>
<td>190 m³/h</td>
<td>210 m³/h</td>
<td>294 m³/h</td>
<td>190 m³/h</td>
<td>210 m³/h</td>
<td>294 m³/h</td>
</tr>
<tr>
<td>Water-lift</td>
<td>3,100 mm H₂O</td>
<td>3,300 mm H₂O</td>
<td>2,800 mm H₂O</td>
<td>3,100 mm H₂O</td>
<td>3,300 mm H₂O</td>
<td>2,800 mm H₂O</td>
</tr>
<tr>
<td>Airwatts</td>
<td>591 W</td>
<td>643 W</td>
<td>835 W</td>
<td>591 W</td>
<td>643 W</td>
<td>835 W</td>
</tr>
<tr>
<td>HEPA Filter Surface Area</td>
<td>6,000 cm²</td>
<td>6,000 cm²</td>
<td>6,000 cm²</td>
<td>6,000 cm²</td>
<td>6,000 cm²</td>
<td>6,000 cm²</td>
</tr>
<tr>
<td>Pro-Tecta Filter Surface Area</td>
<td>1,300 cm²</td>
<td>1,300 cm²</td>
<td>1,300 cm²</td>
<td>1,300 cm²</td>
<td>1,300 cm²</td>
<td>1,300 cm²</td>
</tr>
<tr>
<td>Bin Capacity</td>
<td>20 L</td>
<td>28 L</td>
<td>28 L</td>
<td>20 L</td>
<td>28 L</td>
<td>28 L</td>
</tr>
<tr>
<td>Noise Level</td>
<td>≤ 60 dB</td>
<td>≤ 60 dB</td>
<td>≤ 60 dB</td>
<td>≤ 60 dB</td>
<td>≤ 60 dB</td>
<td>≤ 60 dB</td>
</tr>
<tr>
<td>Weight</td>
<td>15 kg</td>
<td>16 kg</td>
<td>17 kg</td>
<td>15 kg</td>
<td>16 kg</td>
<td>17 kg</td>
</tr>
<tr>
<td>Dwelling Size</td>
<td>≤ 350 m²</td>
<td>≤ 500 m²</td>
<td>≤ 900 m²</td>
<td>≤ 350 m²</td>
<td>≤ 500 m²</td>
<td>≤ 900 m²</td>
</tr>
<tr>
<td>Furthest Valve from the Unit</td>
<td>30 m</td>
<td>50 m</td>
<td>60 m</td>
<td>30 m</td>
<td>50 m</td>
<td>60 m</td>
</tr>
<tr>
<td>Maximum Number of Inlet Valves</td>
<td>8</td>
<td>12</td>
<td>20</td>
<td>8</td>
<td>12</td>
<td>20</td>
</tr>
<tr>
<td>Box Dimensions (L × W × H)</td>
<td>39 × 46 × 89 cm</td>
<td>39 × 46 × 105 cm</td>
<td>39 × 46 × 105 cm</td>
<td>39 × 46 × 89 cm</td>
<td>39 × 46 × 105 cm</td>
<td>39 × 46 × 105 cm</td>
</tr>
</tbody>
</table>
Characteristics
Filteration Systems:
SACH has developed the " Pro-Tecta " filtration system, which extends the filter's maintenance interval thanks to a fine plastic mesh that traps dust, preventing it from adhering to the filter walls. Quick and effective cleaning makes this filter one of the most efficient on the market.
Simplicity and Effectiviness:
Low noise level. Designed with sound-absorbing material that dampens sound.
Carbon filter that captures the dust produced by the motor brushes.
Regulating valve that will allow air to enter the filter area in case the unit is running dry.

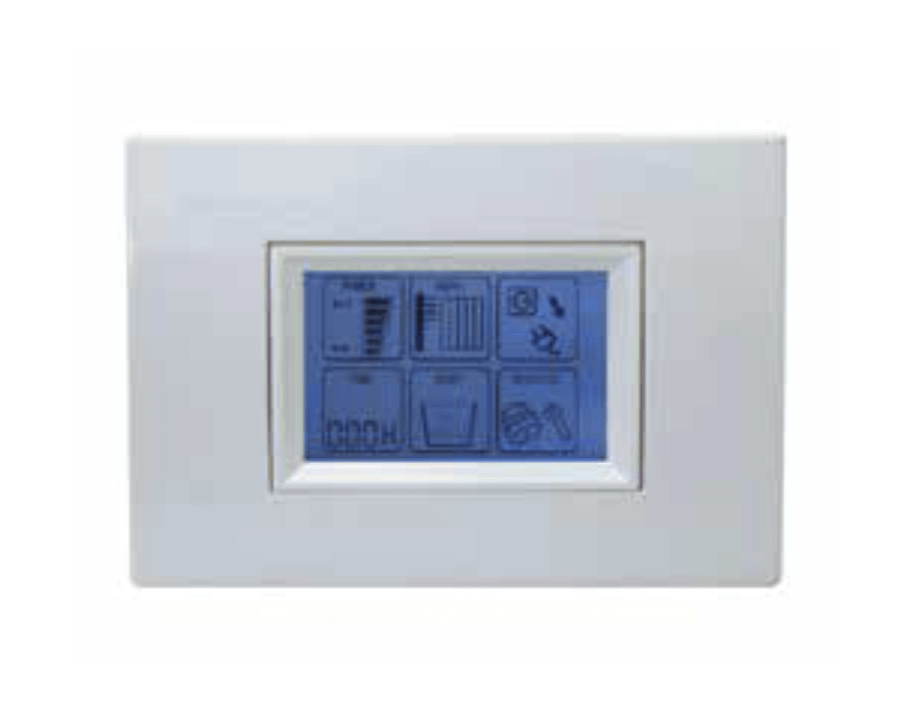

Digital Display:
All the information managed by sensors on the digital control panel of the VAC Digital vacuum unit can now be viewed remotely via the wall-mounted digital display.
Variations

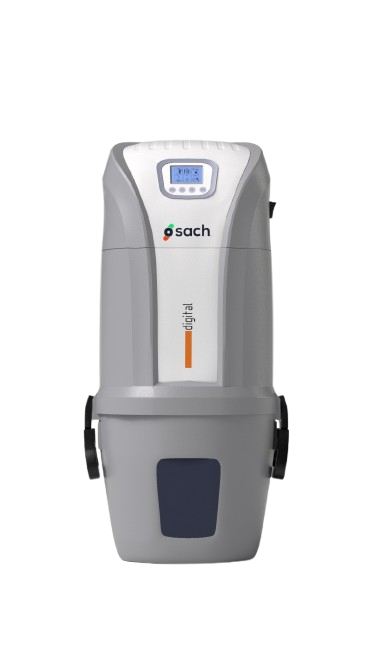

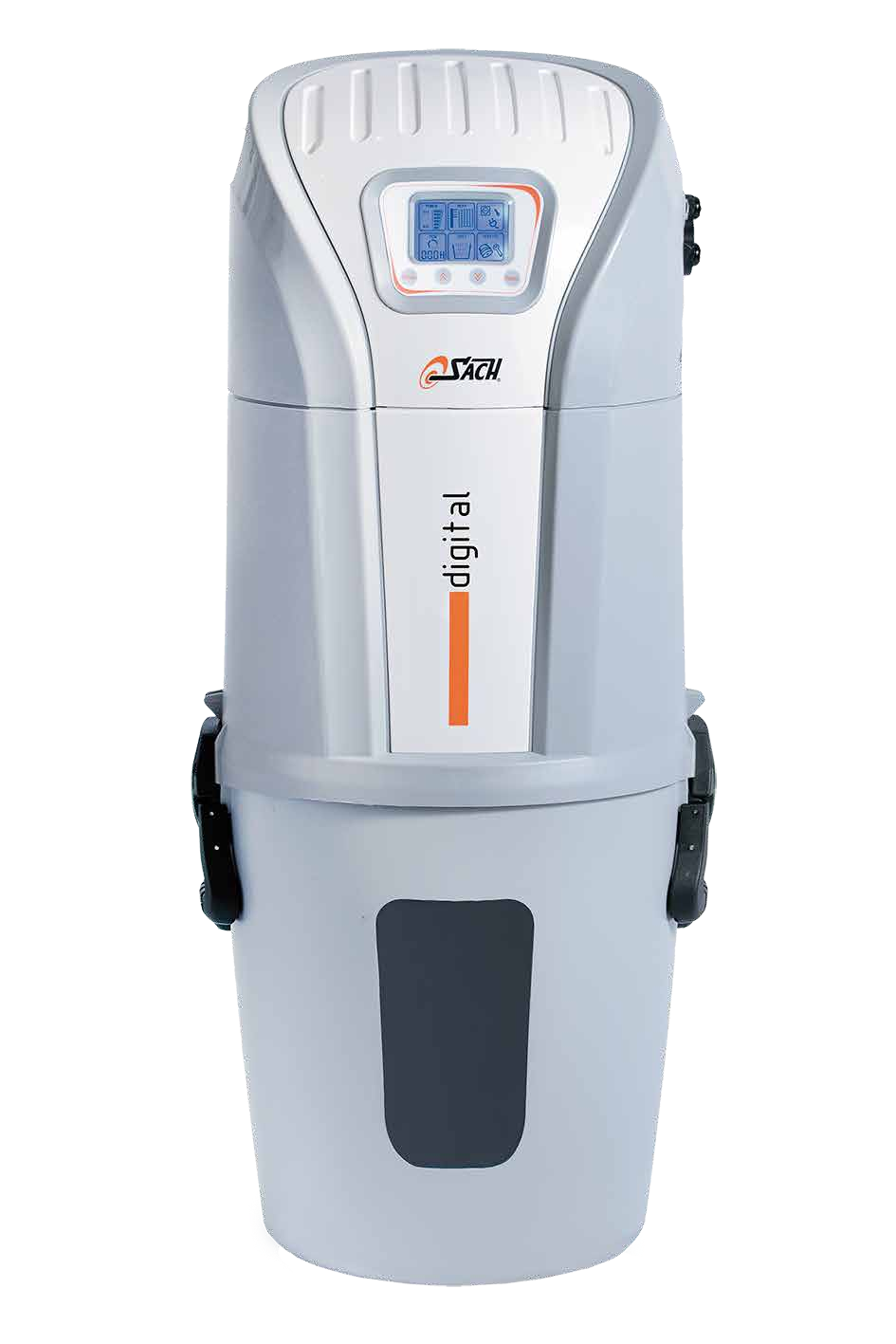

VAC Digital
1.6 (WITHOUT KIT) - UD6004-SC/E
1.8 (WITHOUT KIT) - UD6005-SC/E
2.4 (WITHOUT KIT) - UD6006-SC/E

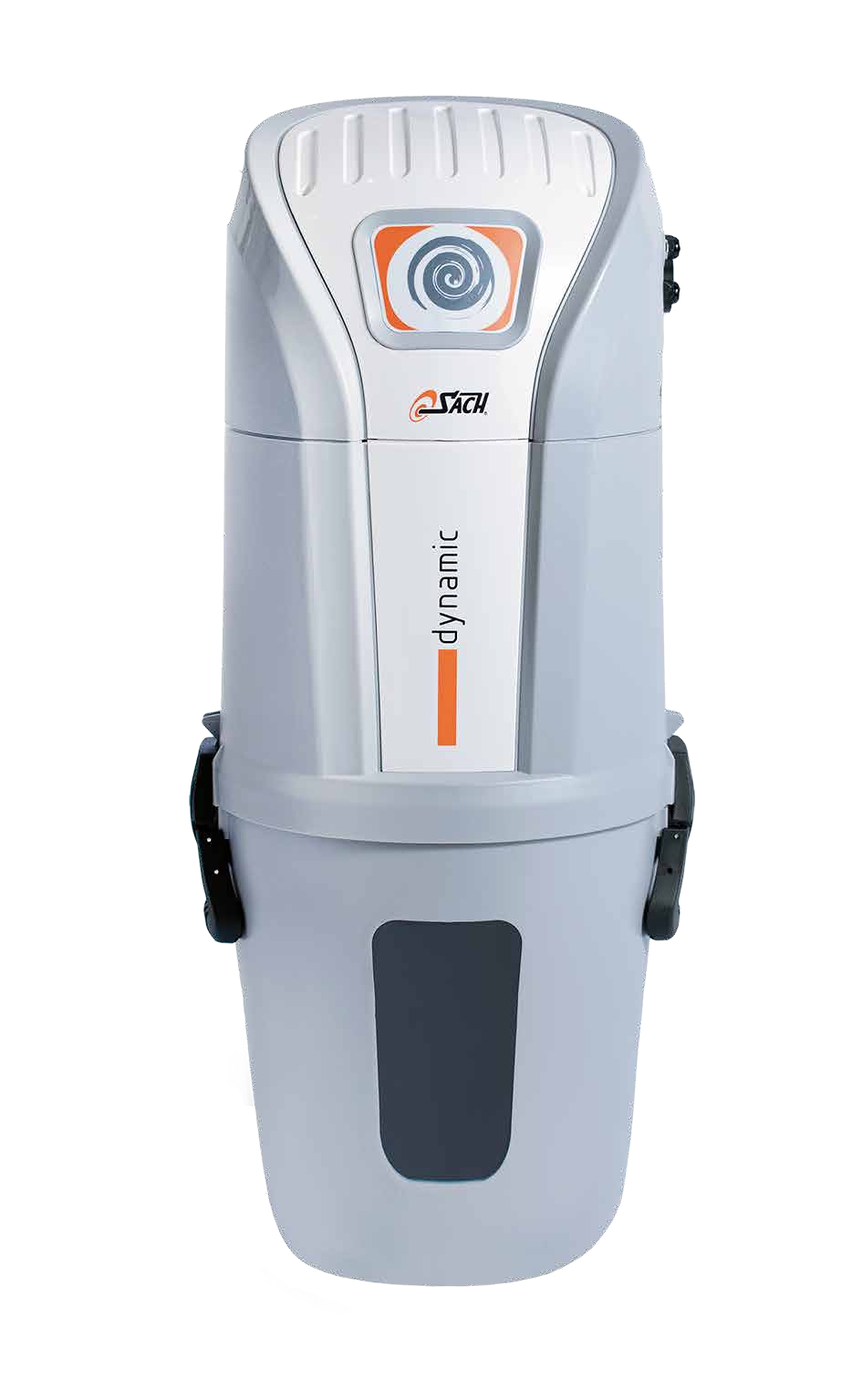

VAC Dynamic
1.6 (WITHOUT KIT) - UD6001-SC/E
1.8 (WITHOUT KIT) - UD6002-SC/E
2.4 (WITHOUT KIT) - UD6003-SC/E
