VAC Mini & Super Mini
The new and innovative VAC Mini & Super Mini emerge in a world in constant transformation, where sustainability and economic pressures are protagonists. That's why we proudly present the VAC Mini & Super Mini: central vacuum equipment designed to deliver exceptional performance at surprisingly competitive prices.
Features
<table>
<thead>
<tr>
<th>Technical Characteristic</th>
<th>VAC MINI</th>
<th>VAC SUPERMINI</th>
</tr>
</thead>
<tbody>
<tr>
<td>Power</td>
<td>1,500 W</td>
<td>1,500 W</td>
</tr>
<tr>
<td>Motor</td>
<td>Thru-flow</td>
<td>Thru-flow</td>
</tr>
<tr>
<td>Power Supply</td>
<td>230 V</td>
<td>230 V</td>
</tr>
<tr>
<td>Frequency</td>
<td>50/60 Hz</td>
<td>50/60 Hz</td>
</tr>
<tr>
<td>Airwatts</td>
<td>620 W</td>
<td>550 W</td>
</tr>
<tr>
<td>Water-lift</td>
<td>3,200 mm H₂O</td>
<td>3,000 mm H₂O</td>
</tr>
<tr>
<td>Air-flow</td>
<td>200 m³/h</td>
<td>190 m³/h</td>
</tr>
<tr>
<td>Filter</td>
<td>HEPA</td>
<td>HEPA</td>
</tr>
<tr>
<td>Bin Capacity</td>
<td>28 L</td>
<td>20 L</td>
</tr>
<tr>
<td>Weight</td>
<td>12 kg</td>
<td>11 kg</td>
</tr>
<tr>
<td>Noise Level</td>
<td>< 60 dB</td>
<td>< 60 dB</td>
</tr>
<tr>
<td>Box Dimensions (L × W × H)</td>
<td>40 × 45 × 66 cm</td>
<td>40 × 45 × 70 cm</td>
</tr>
<tr>
<td>Size of Home</td>
<td>< 350 m²</td>
<td>< 200 m²</td>
</tr>
<tr>
<td>No. of Inlet Valves</td>
<td>6–7</td>
<td>4–5</td>
</tr>
</tbody>
</table>
Power
Cutting-edge engines
our suction systems are powered by state-of-the-art turbines, which rotate at a staggering 60,000 revolutions per minute. This ensures maximum performance, while maintaining remarkably low power consumption.
Power 1,500W
Flow 190/200 m3/h
Depression 3,000/3,200 mm/H2O
Superior filtration
Cyclonic Separation: Our innovative cyclonic system creates a tornado effect inside, effectively separating large particles from smaller ones and ensuring a cleaner and more efficient filtration process.
HEPA filter: Equipped with a generous surface area of 5,000 cm2, a fixing system «easy-click» and a safety switch to prevent operation without a filter, the HEPA filter guarantees that the air that reaches the engine and is subsequently expelled to the outside is absolutely clean.
Easy to Install with compact size
Ultra simple installation
Dual Air Intake Intakes: With air inlet connections on both sides, installation has never been easier, offering greater flexibility in the location of your central suction system.
Adjustable exhaust: Our power plants have a 180-degree rotating exhaust, allowing you to direct it to the right, left or up, depending on your needs.
Compact in size – giants in capacity

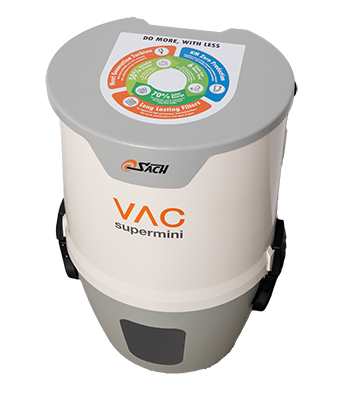

Super Mini: At just 60cm tall, the Super Mini features a 20liter dust container, offering a perfect balance between form and function.

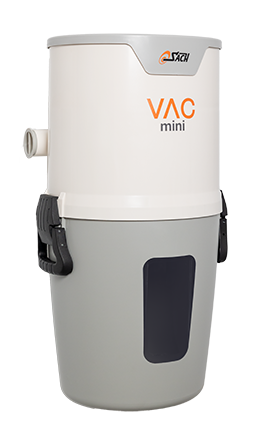

Mini: At 70cm high, the Mini houses a generous 28 liter tub with a convenient viewing window.
Eco-design
Recycled Plastics
We prioritize sustainability by incorporating 50% recycled plastics into our production process, contributing to the cleanliness of our oceans and creating durable, high-quality products.
Minimum Water Consumption
With an optimized design consisting of just 10 plastic and rubber components, we have reduced plastic injection and water consumption impressively, by up to 6 times.
Production with Solar Energy
a staggering 70% of the electricity used to produce plastic parts comes from solar panels, ensuring our central vacuum systems are environmentally friendly from the start. Additionally, 100% of the electricity used to assemble our units comes from renewable energy sources.
Local Supply
We carefully select our suppliers to minimize transportation emissions. Additionally, the compact size of our suction plants contributes to a smaller carbon footprint in the last mile transportation process.
VAC Mini & Super Mini are not just central vacuum systems; They represent a visionary approach to innovation, sustainability and high-performance cleaning solutions. Choose VAC for a cleaner, greener and more efficient future.
