INTEGRA VAC Central

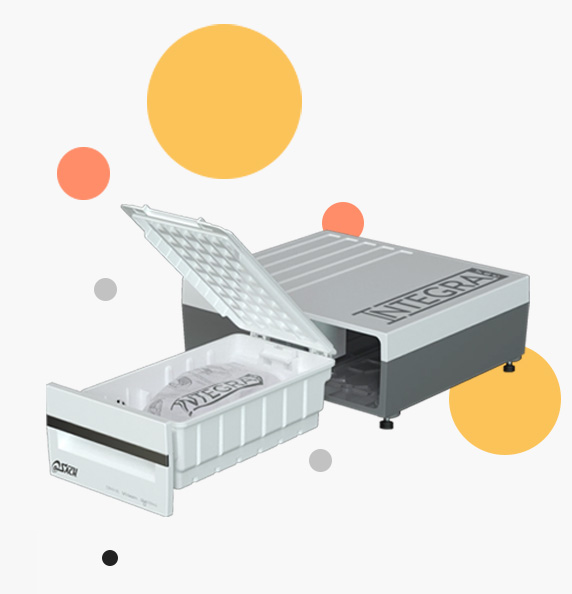

It can be installed under or inside a kitchen cupboard or on the drying wall. The dust is collected in an easily accessible bag located inside the drawer. Integravac is compact, yet powerful and quiet, providing a highly practical and innovative central vacuum system solution for even the smallest of living spaces.
Features
<table>
<thead>
<tr>
<th>Technical Characteristic</th>
<th>Value</th>
</tr>
</thead>
<tbody>
<tr>
<td>Power</td>
<td>1,400 W</td>
</tr>
<tr>
<td>Motor</td>
<td>Thru-flow</td>
</tr>
<tr>
<td>Power Supply</td>
<td>230 V</td>
</tr>
<tr>
<td>Frequency</td>
<td>50/60 Hz</td>
</tr>
<tr>
<td>Airwatts</td>
<td>532 W</td>
</tr>
<tr>
<td>Water-lift</td>
<td>2,850 mm H₂O</td>
</tr>
<tr>
<td>Air-flow</td>
<td>187 m³/h</td>
</tr>
<tr>
<td>Filter</td>
<td>Bag + Filter</td>
</tr>
<tr>
<td>Bin Capacity</td>
<td>4 L</td>
</tr>
<tr>
<td>Weight</td>
<td>4 kg</td>
</tr>
<tr>
<td>Noise Level</td>
<td>< 50 dB</td>
</tr>
<tr>
<td>No. of Inlet Valves</td>
<td>4–5</td>
</tr>
<tr>
<td>Size of Home</td>
<td>< 250 m²</td>
</tr>
<tr>
<td>Box Dimensions (L × W × H)</td>
<td>50 × 53 × 20</td>
</tr>
</tbody>
</table>
Integravac is SACH's new and revolutionary central vacuum system for flats and apartments.
It can be installed under or inside a kitchen cupboard or on the drying wall. The dust is collected in an easily accessible bag located inside the drawer. Integravac is compact, yet powerful and quiet, providing a highly practical and innovative central vacuum system solution for even the smallest of living spaces.
Perfect for Flat and Appartments
Compact: The only central vacuum system with such small dimensions.
Silent: It incorporates a revolutionary silent mechanism within the machine itself. No one will suspect you're vacuuming.
Powerful: The new generation motor is capable of spinning up to 60,000 revolutions per minute, offering high power, with low energy consumption and a resistance tested for many years.
No batteries = Total autonomy: You'll clean faster than ever with the power and accessibility of a central vacuum system. Because it doesn't use batteries, you won't have to worry about wear and tear and future replacements. On the contrary, you can take all the time you need to clean your home with complete peace of mind; INTEGRA VAC is always ready to go.Install it in any position quickly, easily and simply.

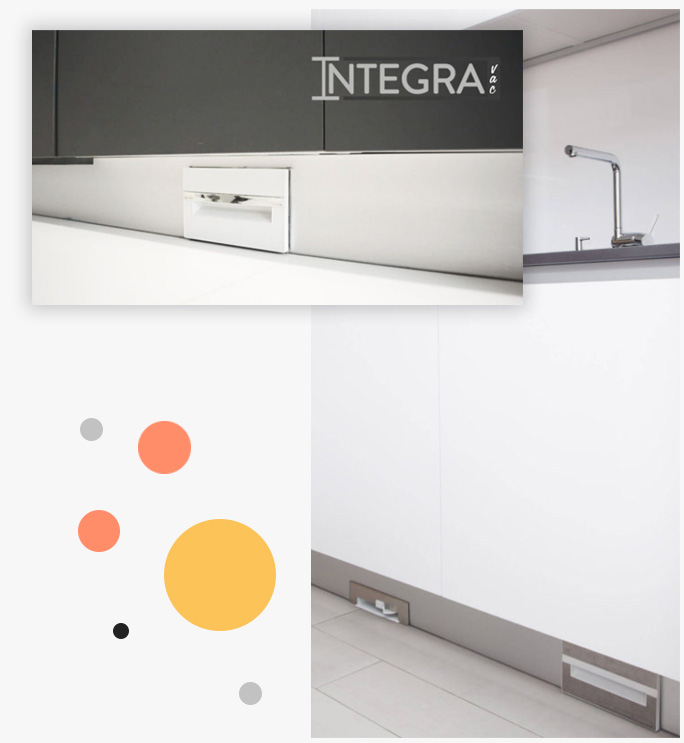

Its compact size and the included hangers allow for installation on the baseboard or cabinets of kitchen furniture or on the drying wall.
99.96% filtration efficiency for particles larger than 0.3 microns.
The 5-layer bag filters 99.96% of particles larger than 0.3 microns and then expels the filtered air to the outside, so that stale air is never recirculated into the home. The bag capacity is 4 liters which are compacted to unsuspected limits, achieving the equivalent of 10 liters of bagless central vacuum cleaners. The bags are self-sealing to avoid contact with the waste when the bag is removed.
Effectiveness and efficiency
Low noise level: designed with sound-absorbing material that dampens the sound.
Regulating valve that will allow air to enter the filter area in case the unit is running dry.
New generation engines . Same performance and lower fuel consumption.
Inter changeable filters and bags
INTEGRAVAC uses a (washable) filter and 5-layer interchangeable bags. The versatility of this filter and bag makes maintaining the central vacuum system easy, clean, and simple.
The smallest central vacuum system on the market.
Thanks to its compact size, the INTEGRA VAC domestic vacuum system integrates easily into any type of space. Initially designed for flats and apartments, it is increasingly used in other types of rooms thanks to its versatility and easy installation with minimal costly construction work.
