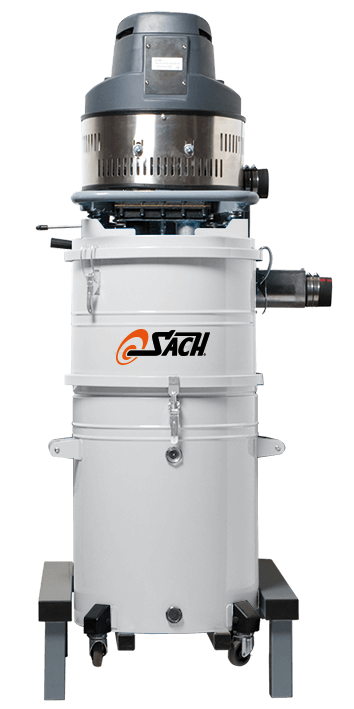

EVOBLOCK Tertiary Central

Name: EVOBLOCK Tertiary Central Vacuum
Brand: SACH

SACH EVOBLOCK is a professional central vacuum system available in single-phase and three-phase configurations. With mechanical or electronic control, progressive motor start and airflow up to 560 m³/h, EVOBLOCK provides a centralized vacuum solution for demanding installations.

Specification Sheet

Variations

Features

Technical Characteristic	EVOBLOCK ST3280.0-SC	EVOBLOCK ST3290.1-SC	EVOBLOCK ST3290.2-SC	EVOBLOCK ST3290.4-SC	EVOBLOCK ST3290.3-SC
Control Type	Mechanical	Mechanical	Electronic	Electronic	Mechanical
Configuration	EVOBLOCK Single-Phase	EVOBLOCK Three-Phase	EVOBLOCK Three-Phase	EVOBLOCK Three-Phase 5.5 kW	EVOBLOCK Three-Phase
Number of Users	1	2	2	3	3
Electrical Supply (V/Hz)	220 / 50-60	380 + Neutral / 50-60	380 + Neutral / 50-60	380 / 50-60	380 / 50
Power	2.2 kW	3 kW	3 / 3.45 kW	5.5 / 6.6 kW	5.5 kW
Motor Speed	2900 RPM	2900 RPM	3500 RPM	3500 RPM	2900 RPM
Progressive Start	Yes	Yes	Yes	Yes	Yes
Maximum Vacuum	2000 mm H₂O	3100 mm H₂O	3100 mm H₂O	3200 mm H₂O	3200 mm H₂O
Maximum Airflow	320 m³/h	320 m³/h	360 m³/h	560 m³/h	500 m³/h
Inverter	No	No	Yes	Yes	No
Noise Level	<70 dB	<70 dB	<70 dB	<70 dB	<70 dB
Weight	117 kg	117 kg	120 kg	155 kg	151 kg
Filter Surface Area	13,000 cm²	13,000 cm²	13,000 cm²	24,000 cm²	24,000 cm²
Container Capacity	—	—	—	75 L	75 L

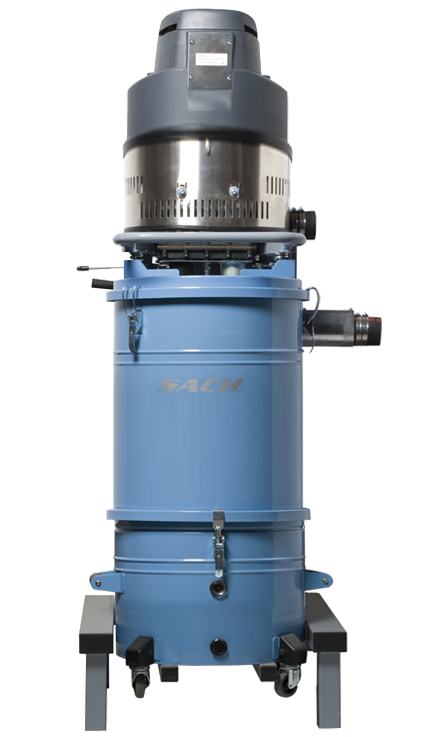

SINGLE-PHASE AND THREE-PHASE EVOBLOCK

The EVOBLOCK control unit incorporates a filter cartridge cleaning system through air flow control, provided by the engine itself. The dust container has a lever by which it is detached from the unit and emptied easily. It is also provided with wheels that facilitate its maneuverability.

‍

Variations

Monophasic

2.2kW MECHANICAL C - ST3280.0-SC

‍

Three-phase

3KW - ST3290.1-SC

3KW C. ELECT. - ST3290.2-SC

5.5kW C. MEC - ST3290.3-SC

5.5kW C. ELECTRONIC - ST3290.4-SC

‍
